860010572003
Manufacturer:
Wurth Electronics
Mfr.Part #:
860010572003
Datasheet:
Description:

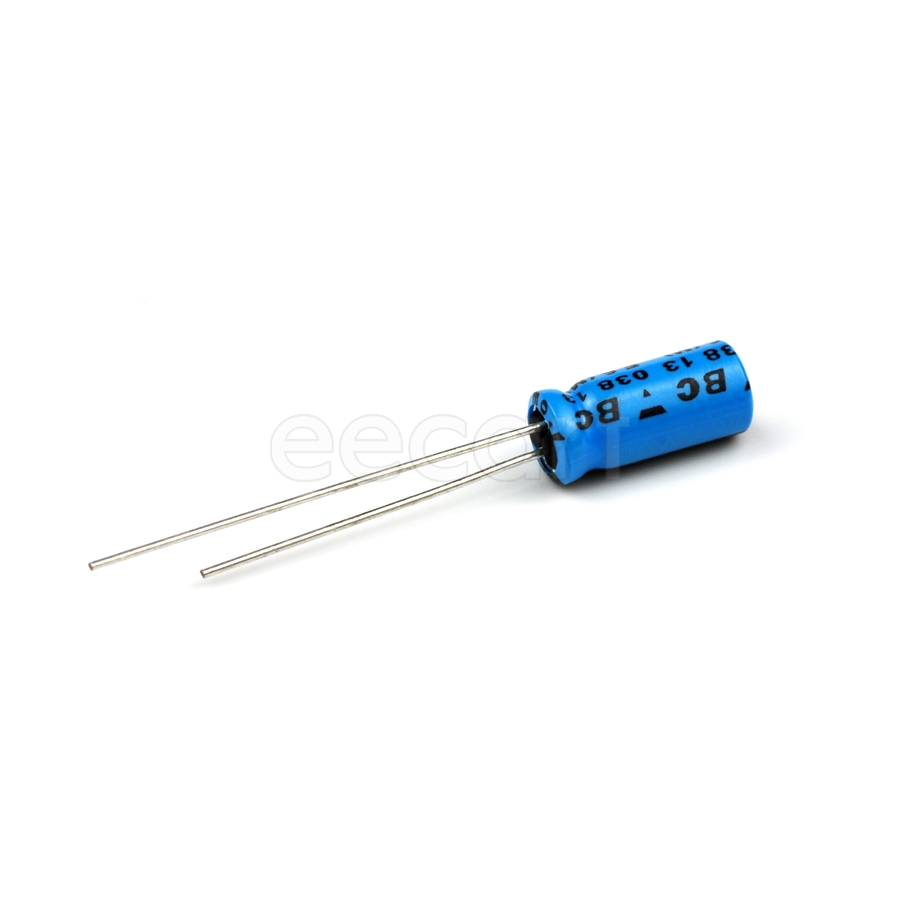

Aluminum Electrolytic Capacitors 5.00mmD×12.50mmH Through Hole 22 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 108 mA |
| Height - Seated (Max) | 12.5 mm |
| Diameter | 5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 11 mm |
| Packaging | Reel |
| Voltage Rating | 35 V |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Pitch | 2.0066 mm |
| REACH SVHC | Unknown |
| Ripple Current @ Low Frequency | 108 mA @ 120 Hz |
| Ripple Current @ High Frequency | 165.24 mA @ 100 kHz |
Stock: 359
Distributors
pcbx
pcbxUnit Price$0.06279
Ext.Price$0.06279
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06279 | $0.06279 |
| 10 | $0.05913 | $0.59130 |
| 50 | $0.05569 | $2.78450 |
| 100 | $0.04881 | $4.88100 |
| 500 | $0.03754 | $18.77000 |
| 1000 | $0.03629 | $36.29000 |
